3D BIOPRINTERS

At regenHU, our ambition is to engineer cutting-edge bioprinting   solutions to enable scientific and clinical advancements. Our   bioprinters offer a wide selection of  high-end professional  bioprinting instruments for the driving force of  scientific  advancements in Tissue Engineering, Regenerative Medicine and  Drug  Discovery.


FLEXIBILITY

The configuration of your instrument can be  modified to your needs at any time, allowing your bioprinting hardware  to evolve with your specific scientific requirements.

MODULARITY

We provide a large diversity of printhead  technologies to process an extensive biomaterial portfolio, multiple  polymerization methods and technical accessories allowing us to adapt  and optimize your instrument to your application needs.

CUSTOMIZATION

Your application requires precise solutions and  with our engineering expertise we are able to extend the hardware  capacity of our products to respond to your ever evolving specifications  (software, labware or hardware tools).

logo regenhu

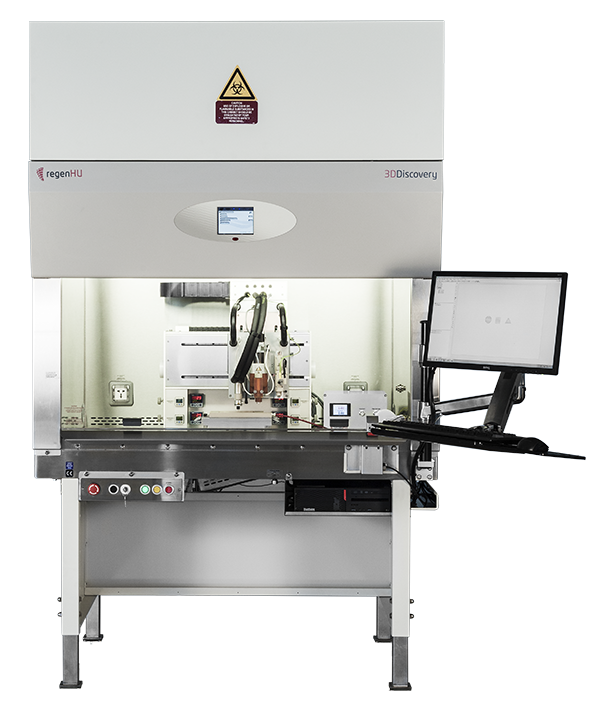

3DDISCOVERY™ EVOLUTION

Built in a modular approach to guarantee maximum flexibility of use, the 3D Discovery Evolution is designed for both experienced scientists and those who are taking their first steps in 3D bioprinting.

6 printheads
This ultimate 3D bioprinter includes six printheads that can be used simultaneously to build complex multimaterial and multicellular 3D constructs.

Technology convergence (extrusion/electrospinning)
The convergence of electrohydrodynamic technologies (solution electrospinning or melt electrowriting) with complementary inkjet, pneumatic, thermopolymer extrusion, and piston-driven deposition provides unprecedented levels of control at the micro-nano scale.

Evolution over time
Features such as class II biosafety cabinet, UV light source for photopolymerization, plasma pens, nebulizers, individual temperature control or inline vision system can be integrated to create an all-in one biofabrication platform.

Customization
If our standard product offering does not fully meet your requirements, our customization team will engineer tailor-made solutions for your specific needs.

We support research at the global forefront of science. Applications such as tissue engineering, personalized medicine, and pharma are using our technology to their advantage.

3D Discovery Evolution is the outcome of twelve years of dedicated work,  passion and above all of listening to our clients’ needs and  understanding their expectations.

logo regenhu

3DDISCOVERY™

The 3DDiscovery™ is a high performance bioprinter with a unique modularity and fexibility for research and development.

This platform is a versatile and cell friendly instrument. It can create three-dimensional models that more closely mimic what happens in living organisms. It allows scientists to pattern cells, biomolecules, and a range of soft and rigid materials in desirable 3D composite structures.

  • Up to 9 printhead technologies
  • Printhead technology convergence
  • Melt Electrospinning & Bioprinting
  • Technology convergence


The 3DDiscovery™ BioSafety is the extended version of The 3DDiscovery™ Bench Top with class II biosafety cabinet and is designed for biotech applications.

Datasheet 3DDiscovery™
logo regenhu

BIOFACTORY™

The BioFactory™ is a versatile and cell friendly three-dimensional manufacturing instrument allowing scien- tists to pattern cells, bio-molecules and a range of soft and rigid materials in desirable 3D composite structures, mimicking natural environments.
High-end solution for Industrial applications.

  • Up to 8 printheads
  • Printhead technology convergence
  • Customization to user process
Datasheet BioFactory™

Dedicated to labautomation, organ-on-chip and microfluidics applications

Dedicated to labautomation, organ-on-chip and microfluidics applications

Engineered to maximize cell viability

Engineered to maximize cell viability


Enabling complex biomaterials processing

Enabling complex biomaterials processing


logo regenhu

What is the best solution for your application ?


3DDiscovery

BioFactory™
3DDiscovery™
3DDiscovery™
BioSafety
3DDiscovery™ Evolution

FEATURES
High-end solution for Industrial applications.
The 3DDiscovery™ Bench Top is a high performance bioprinter with a unique modularity and flexibility for research and development
The 3DDiscovery™ BioSafety is the extended version of The 3DDiscovery™ Bench Top with class II biosafety cabinet. Designed for demanding biotech applications
The 3DDiscovery™ Evolution is the most advanced biofabrication solution that converges 3D-Bioprinting, electrospinning and bio stimulation functions in one single process unit. It offers a unique opportunity to understand which stimuli need to be used in what conditions to enable tissue & organ fabrication.

PRINTHEADS
Up to 8 printheads
Up to 9 printhead technologies
Up to 9 printhead technologies
Up to 11 printhead technologies

Printhead technology convergence
Printhead technology convergence
Printhead technology convergence
Printhead technology convergence

Customization to user process
Melt Electrospinning & Bioprinting technology convergence
Melt Electrospinning & Bioprinting technology convergence
Melt Electrospinning & Bioprinting technology convergence

-
-
-
Biostimulation
- Matrix Density / Macro & Nano structural matrix
- Stress stimulation
- Electromagnetic stimulation
- Optical stimulation
- Hydrodynamic stimulation
Direct Dispensing



Cell Friendly




Co-Axial printing




Two component printing




Thermopolymer Extrusion (Screw driven)




Thermopolymer Extrusion (Direct Dispensing)




Melt Electrospinning
(MESW)
-



High precision plunger dispenser
-



Fused deposition modeling printhead
-




PHOTO CURING




UV 365nm




UV 520nm




Variable Spectrum
(360- 580)




Laser Direct Polymerization

-
-


HEATING




Cartridge Heater




Platform Heating





COOLING




Cartridge Cooling




Platform Cooling





IN-PROCESS CONTROL




Needle length measurement
Laser
Laser
Laser
Laser
Substrate Height
Measurement
-



XView (QC/PatternC)
-
on request
on request
on request
Tailor Cone Visualizer
-



Real-time process
visualization
-




SOFTWARE




BioCAD™




BioCAM™
-



BioCUT™




In-Control Interface
-



G-Code Interface





ENVIRONMENTAL
CONTROL





BioSafety
class II
-
class II
class II
Sterility

-


Chemical Safety
-
-
class X
class X

BUILD VOLUME [W*D*H] [mm]
60 × 55 × 55
130 × 90 × 60
130 × 90 × 60
130 × 90 × 60

PRINTING RESOLUTION [μm]
+-5
+-5
+-5
+-5

EXTERNAL DIMENSION [mm]
1370 / 1240 / 2400
600 / 700 / 670
1370 / 1240 / 2400
1370 / 1240 / 2400

DOWNLOAD BROCHURE
logo regenhu

BIOPRINTING SOFTWARE SUITE

regenHU developed the most intuitive and advanced software tools to allow you to turn your ideas into living constructs. Our suite lets you design your 3D models layer-by-layer with BioCAD, or slice STL files in BioCAM. Personalized constructs can be generated from any medical image (DICOM format) using BioCUT. The three applications are interconnected, and file exchange is done through standard formats.

The suite was optimized to explore the full potential of the 3D Discovery Evolution bioprinter. Plugins for printing in labware or using electrohydrodynamic technologies are integrated.

Advantages

  • Provide tools to exploit the 3D-Discovery to its maximum potential.
  • Transition from the Medical world to the Bioprinting world.
  • Tailor-made for bioprinting through plugins (e.g. for labware printing).
  • Visualization of the planned printing.
  • Easy-to-use

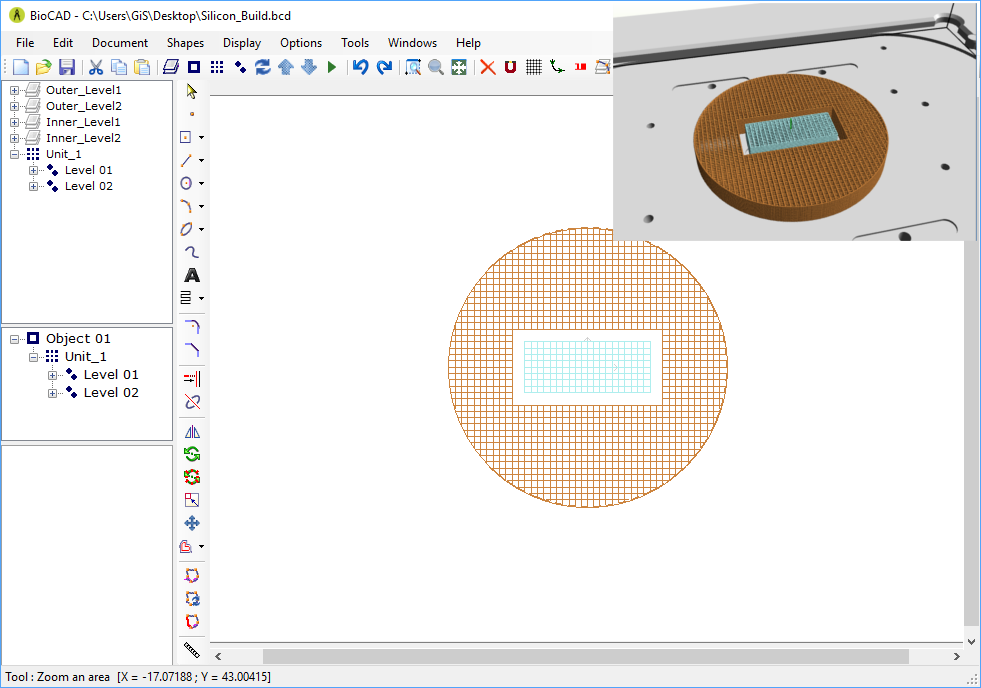

BioCAD™

BioCAD™ is an intuitive, easy to use drawing suite that allows scientists and biomedical designers to design tissues, patterns, and scaffolds within minutes. There is no need for pre-existing 3D models or medical images, since BioCAD™ has all the necessary tools that allow you to design multima- terial models from scratch. The ECM-BioInk™ portfolio contains 5 formulations that differ from each other in the electrical net charge which impacts the matrix stiffness and consequently cell proliferation capacity.

Datasheet Bioprinting Suite

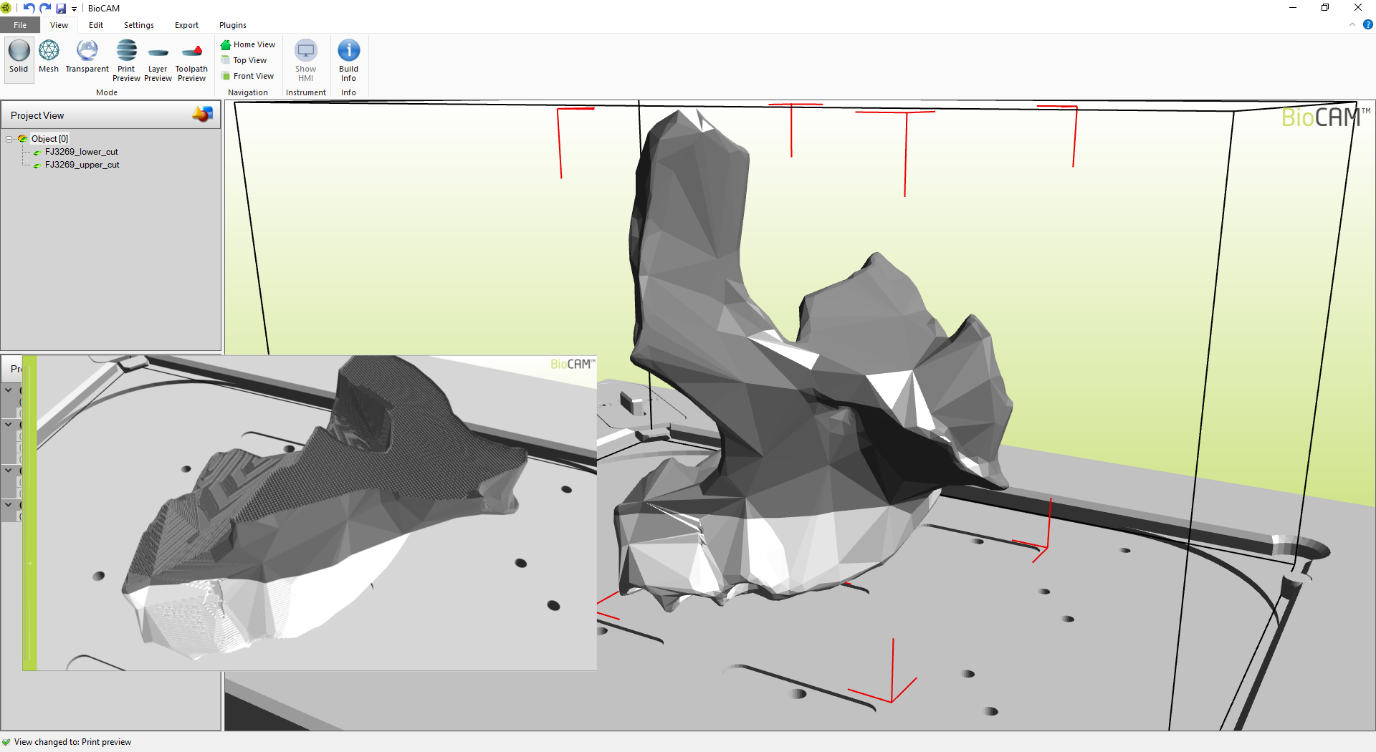

BioCAM™

BioCAM™ is an easy to use 3D model slicer and toolpath generator dedicated to regenHU’s 3D bio and tissue printers. It enables the creation of multimaterial tissues based on 3D digital models acquired from CAD systems, 3D scanners or medical imaging.

Datasheet Bioprinting Suite

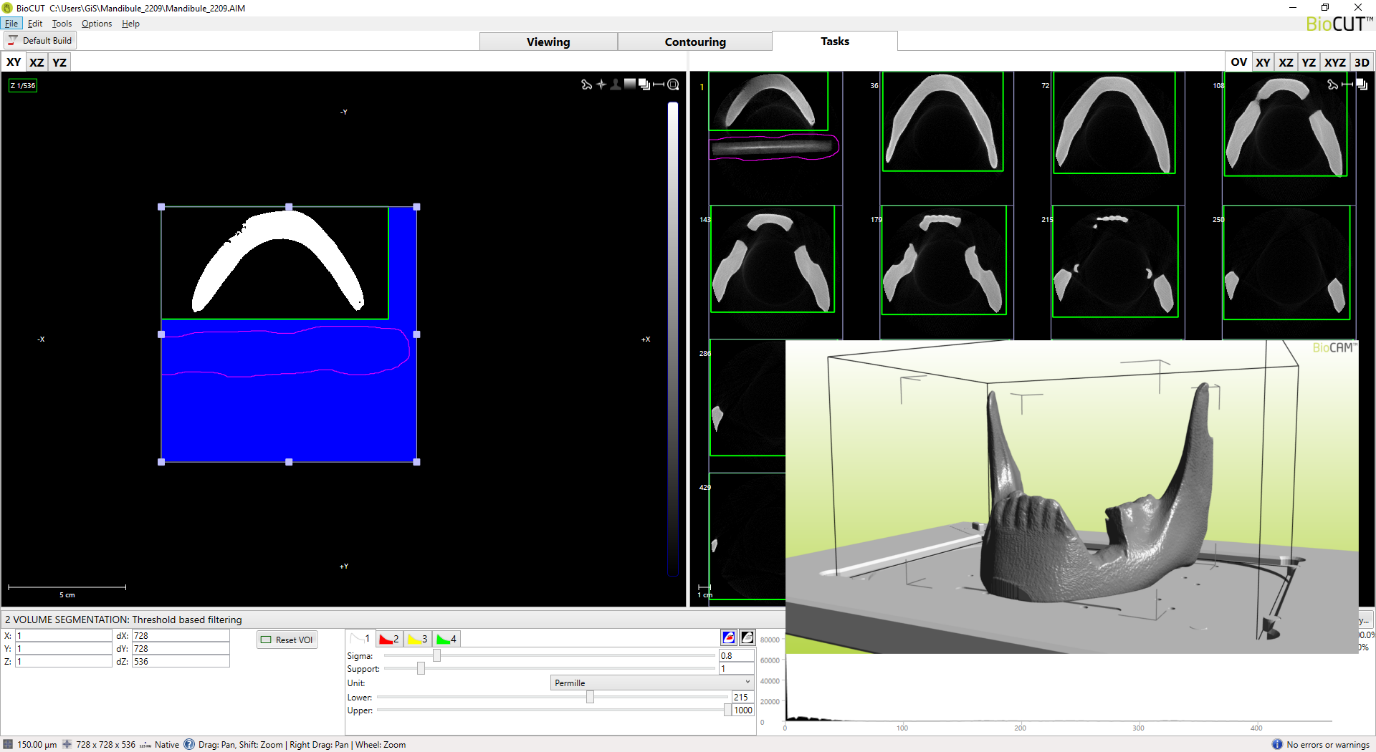

BioCUT™

BioCUT™ is an easy to use DICOM visualizer and analyzing tool which is integrated in regenHU’s 3D bio and tissue printing digital workflow. It is a powerful software tool that allows scientists, biomedical designers and healthcare providers to create complex tissue structures while leading the user through the digital workflow: from medical imaging to multi-tissue modeling and multi-material 3D bioprinting interface.

Datasheet Bioprinting Suite
